QT15-15

Category:QT Series Block Making Machine

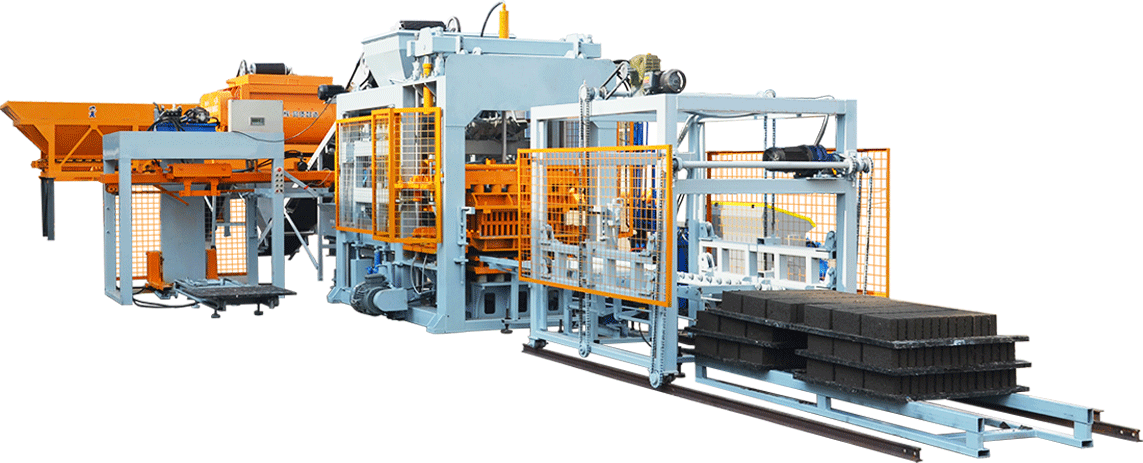

QT15-15 block making machine, designed for small-scale production of various blocks including hollow, solid, pavers, and curbstones. To ensure efficiency and reliability for overseas markets, we’ve integrated components from reputable international brands. With top-tier quality and easy maintenance, our machine offers superior performance, compliance with global standards, and confidence for customers worldwide.

Description

QT15-15

automatic cement block making machine

PLC intelligent control whole process,Equipped with data input and output devices to achieve idealman-machine dialoque. lt can also be controlled manually and touched, the operation is efficient and simple.

Product Parameters

Best Price In Same Quality, Best Quality In Same Price

Vibrating Frequency:2800-4600rolls/minute
Main vibration form:Platfom vibration
Vibrating Force:242 KN
Rated pressure:21Mpa
Motors Power:62KW
Molding cycle:15-20S
Demolding methodHydraulic
Pallet Size:1300x1100mm
Gross Weight.About 15T for simple production line
Raw Matenals:Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perite, and other industrial wastes.
Applied Products:Concrete blocks, solidhollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, curbstones, grass blocks, slope blocks, interlocking blocks, etc
Applied Fields:Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
Responsive Table
Block size L*W*H(mm) Block shape Molding cycle Pcs/Mould Pcs/H Pcs/8H
400x200x200 15-20s 10 1800-2400 14400-19200
400x150x200 15-20s 12 2160-2880 17280-23040
400x100x200 15-20s 18 3240-4320 25920-34560
200x100x60 20-25s 31 4464-6480 35712-51840
225×112.5×60 20-25s 24 4032-5040 32256-40320
240x115x53 15-20s 52 9360-12480 74880-99840

Product Details

Best Price In Same Quality, Best Quality In Same Price

Four External Vibration
Motors

Starting speed is faster

Synchronous Shaft

Rhodium-plated shaft very
durable,power is more evenly
distributed, synchronizationeffect is better.

High-dynamic
Proportional Valves

Improve Stability and protect
the cylinder.

Frequency converter

Power Saving 20-30%

With External Visible Oil
Level Device

To prevent untimely oil replen-ishment so to avoid damage tothe vibrating box.

The Jack

To save time and effort whenchanging the mold or adjustingthe height of the material feeder.

  Introduction

  • PLC intelligent control whole process, Equipped with data input and output devices to achieve ideal man-machine dialogue. It can also be controlled manually and touched, the operation is efficient and simple.
  • Adopt Four-bar guiding method and ultra-long guiding bearings ensure accurate movement of the mould
  • Machine body adopt super strong steel and special welding technology, strong vibration resistance, long service life
  • The moulds can be changed fast, it can produce different shape and size paver, curbstone, solid blocks, hollow blocks etc. It is a Multi-purpose machine.
  • Imported computer, Electrical appliances, seals, some hydraulic components, machine performance is comprehensive and stable
  • Hydraulic transmission, compact structure, easy maintenance, flexible operation and high reliability
  • Pressure up and down, strong vibration, especially suitable for bearing high-strength blocks (strength up to 20Mpa)
  • Blocks high strength, excellent density, size accurate and shape regular.
  • Achieve high-efficiency use of a large amount of fly ash and waste residue

Related Products

Best Price In Same Quality, Best Quality In Same Price

Customer Site

Best Price In Same Quality, Best Quality In Same Price

Optional Configuration

Best Price In Same Quality, Best Quality In Same Price

Finished Blocks

Best Price In Same Quality, Best Quality In Same Price

Production Line

Best Price In Same Quality, Best Quality In Same Price

(1)Cement Silo (5)Concrete Mixer (9)Pallets Feeder (13)Block Stacker

(2)Screw Conveyor (6) Block Machine (10) Block Conveyor  (14) Forklift

(3)Cement Scale (7) Hydraulie Unit (11) PLC Control Unit

(4) Batching Machine (8)Conveyor Belt (12) Mould

Company Profile

Best Price In Same Quality, Best Quality In Same Price

shiyue machine factory

Shandong Shiyue intelligent Machinery Co., Ltd. is a leading domestic supplier of concrete ma.chinery and equipment. We are located in Linyi City, Shandong Province. The nearest port isQingdao Port. Our products mainly include concrete block machines, block machines and otherrelated equipment such as Mixers, conveyor belts, automatic pallet loaders, stackers, cubesbatching machines,cement silos,color material feeders, etcOur factory covers an area of 46000 square meters, 6 workshops with different functions,320experienced engineers and technicians
Our machines are applicable to 108 countries and regions. Our products are widelyWell received at home and abroad, we customize different types of machines according to customers’ local requirements.
Different from other suppliers, our automatic block machine is European-style design, with air-bags and four vibration motors, so that the machine has lower noise but stronger vibration force
and higher density of finished blocksQuality creates value, professional achievement succeeds. Based on the operating principle ofmutual benefit, we have won the trust of customers with professional services, high-quality prod-uct prices and competitive prices. We warmly welcome domestic and foreign customers to cooperate with us and achieve common success.

Certificate

Best Price In Same Quality, Best Quality In Same Price

Customer Praise

Best Price In Same Quality, Best Quality In Same Price

Our Team

Best Price In Same Quality, Best Quality In Same Price

Exhibition

Best Price In Same Quality, Best Quality In Same Price

Production Process

Best Price In Same Quality, Best Quality In Same Price

1 Pre-cutting Material

1

2 Sanding And Polishing

1

3 Welding

4 Mold wire cutting Processing

1

5 Installation and commissioning

1

6 Testing Machine
